Current Sensor 50A (AC/DC)

1,675.00

Current Sensor 50A (AC/DC)

This is a breakout board for the fully integrated Hall Effect based linear ACS758 current sensor. The sensor gives precise current measurement for both AC and DC signals.The module features thick copper conductor that allows it to handle over current conditions.

Category:

Current Sensor 50A (AC/DC)

This is a breakout board for the fully integrated Hall Effect based linear ACS758 current sensor. The sensor gives precise current measurement for both AC and DC signals.The module features thick copper conductor that allows it to handle over current conditions.

The ACS758 outputs an analog voltage output signal that varies linearly with sensed current.

FEATURES

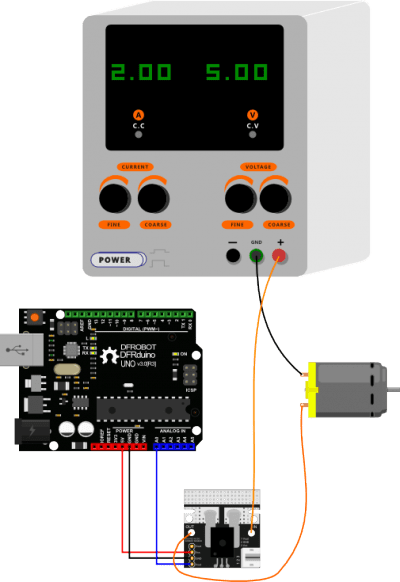

  • Arduino interface compatible
  • 120 kHz typical bandwidth
  • 3 ?s output rise time in response to step input current
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Nearly zero magnetic hysteresis
  • Total output error improvement through gain and offset trim over temperature
  • Monolithic Hall IC for high reliability
  • Ultra-low power loss: 100 ?? internal conductor resistance

SPECIFICATION

  • Operating Voltage(analog): 3.3-5V
  • Peak Measuring Voltage:3000V(AC),500V(DC)
  • Current Measuring Rang:-50~50A
  • Sensitivity:40 mV/A
  • Operating Temperature: -40~150°C
  • Dimension:34x34mm

DOCUMENTS
